FUTUREBUILD® LVL hyJOIST®
Features & Benefits
- hyJOIST is manufactured from sustainably-grown NZ plantation pine

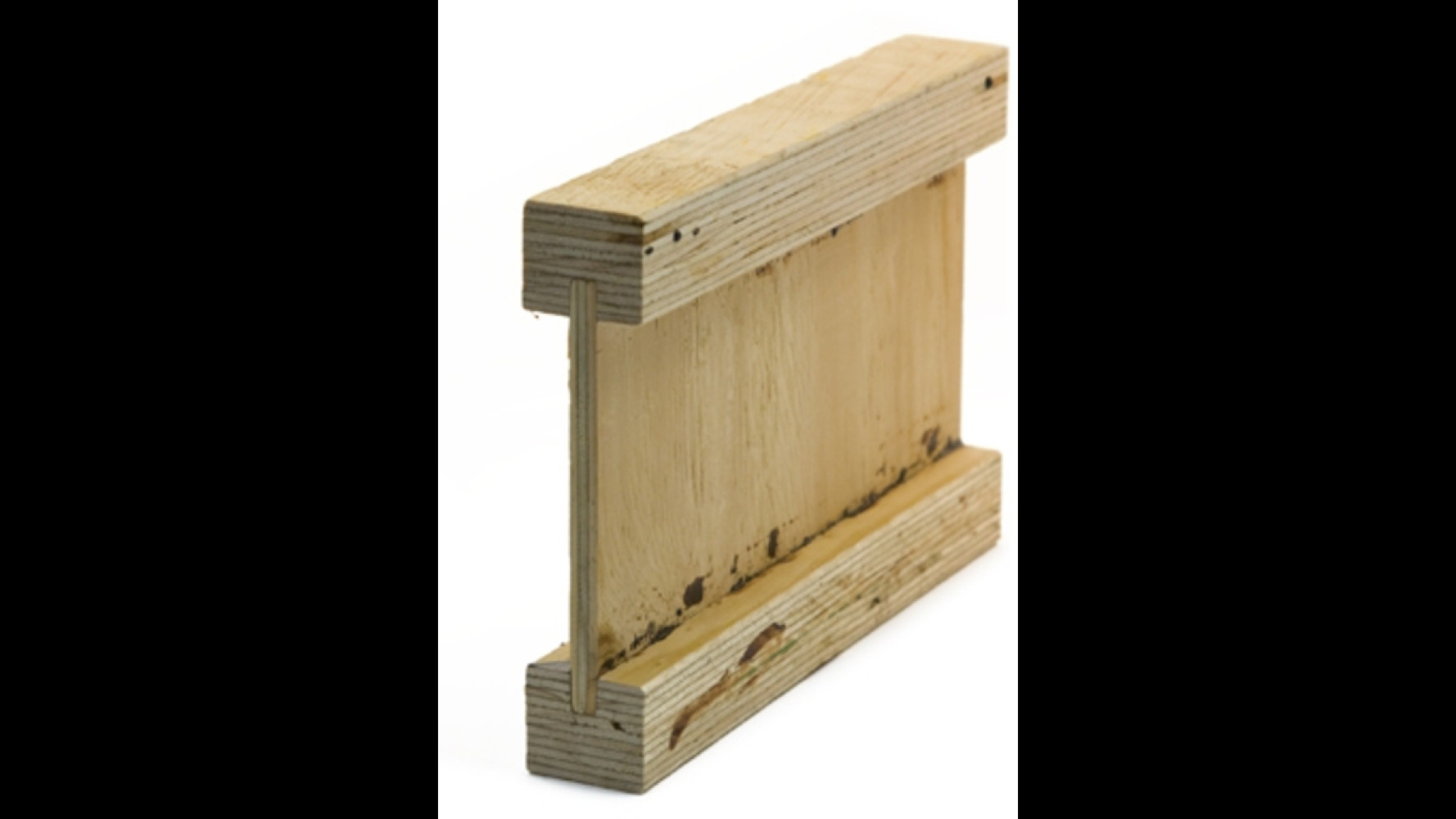

- Consisting of structural LVL flanges and a structural plywood web, all veneers are bonded together using type 'A' (marine) bond, known for long-term durability in structural applications
- Available in 10 section sizes and 3 different flange widths. Allowing specifiers to optimize performance of a floor design in depth, span, load and cost

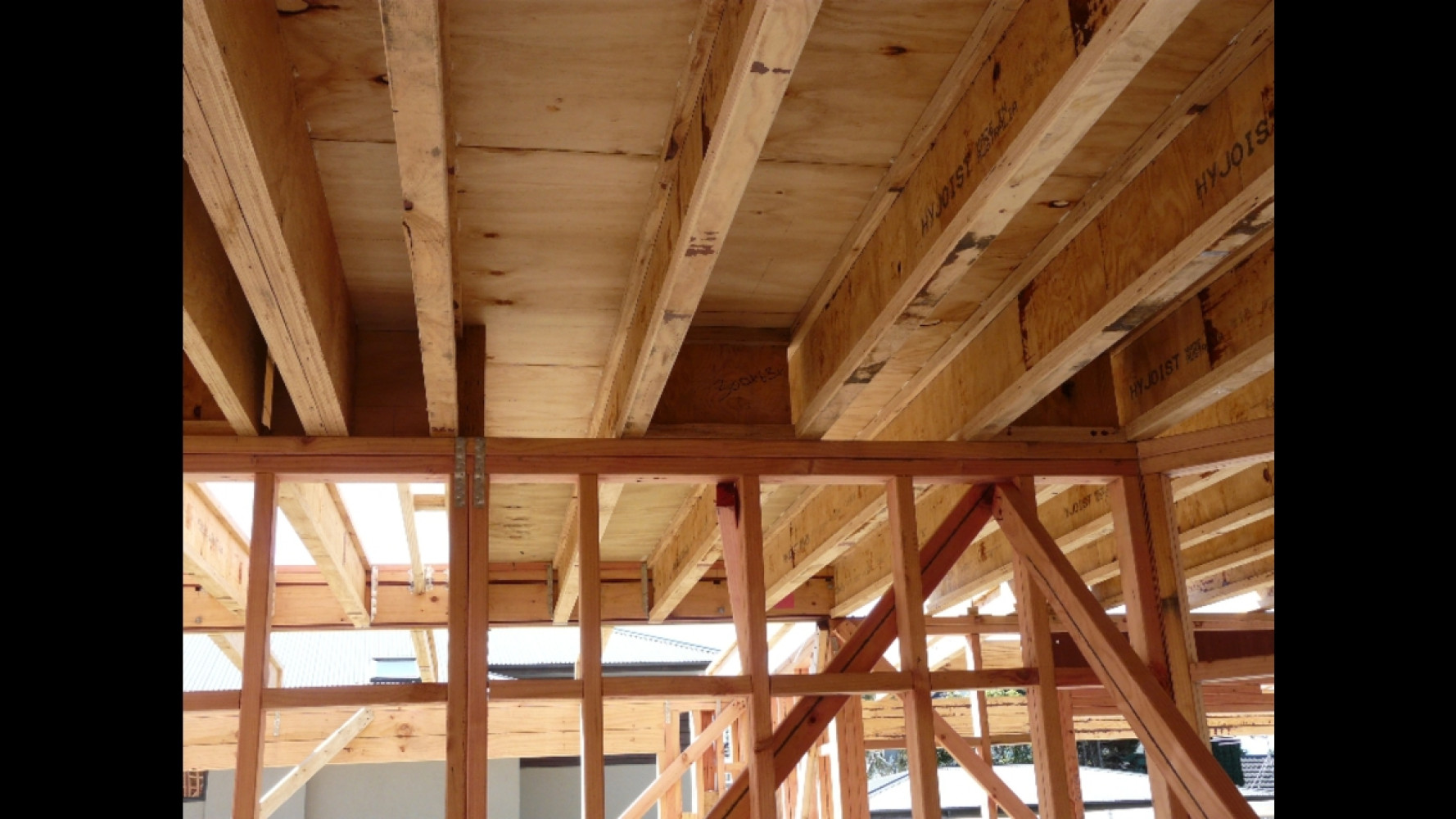

- Provides greater design flexibility for cost-effective floor layouts
- Available in a range of lengths up to 12.6 metres

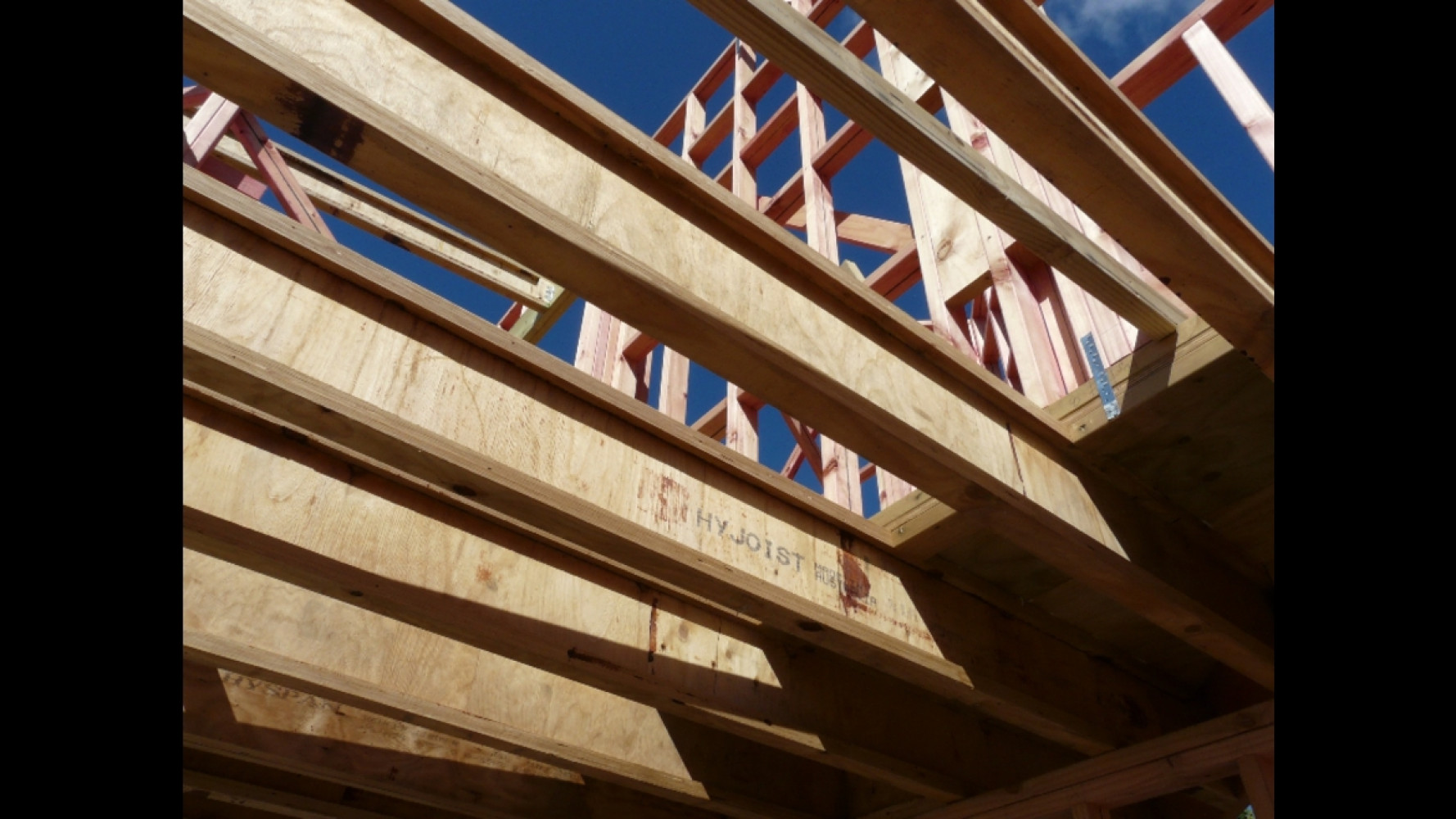

- Lightweight: HJ240 45 and HJ300 45 hyJOIST are approximately 60 - 70% the weight of equivalent spanning SG8 section

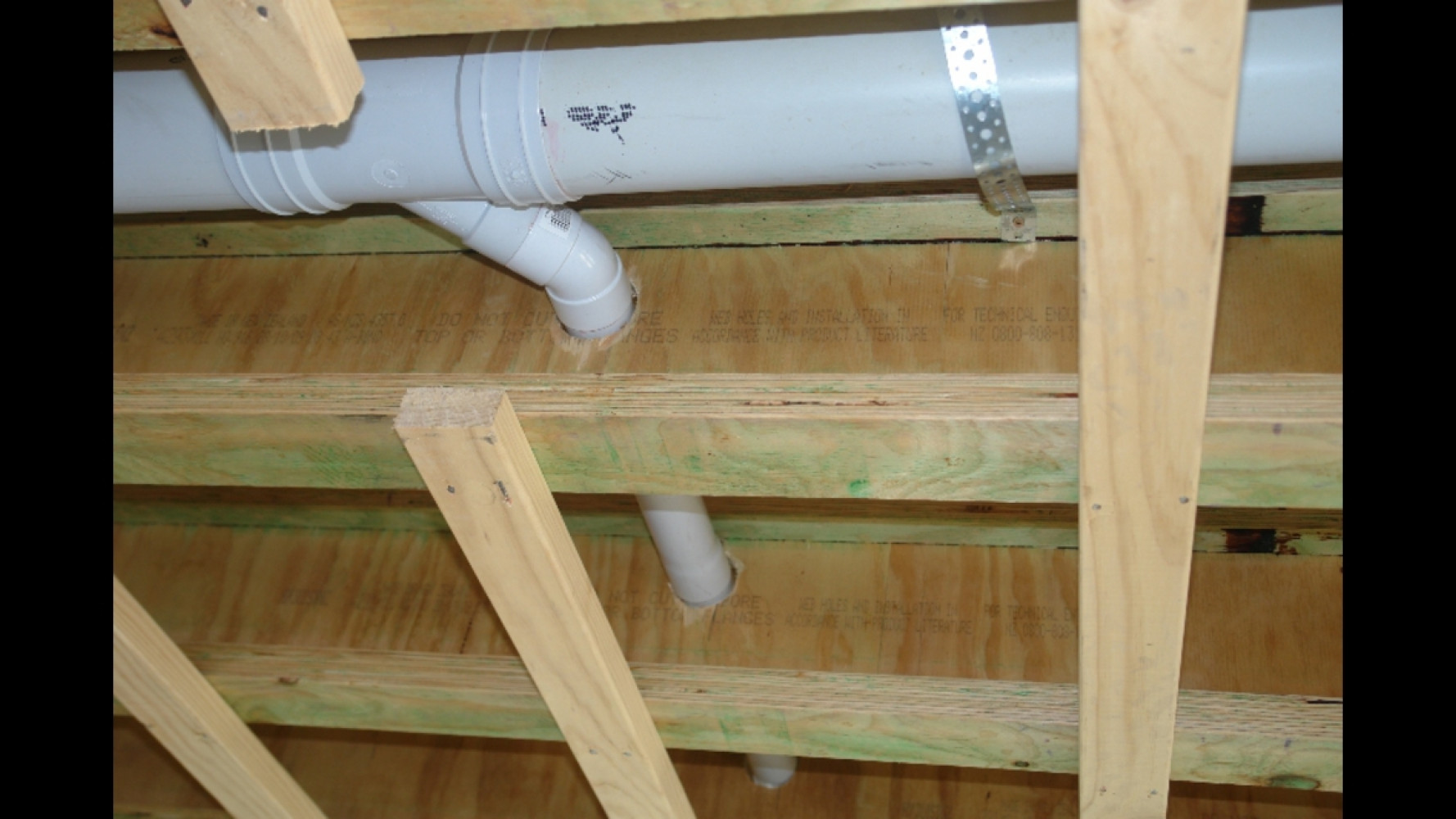

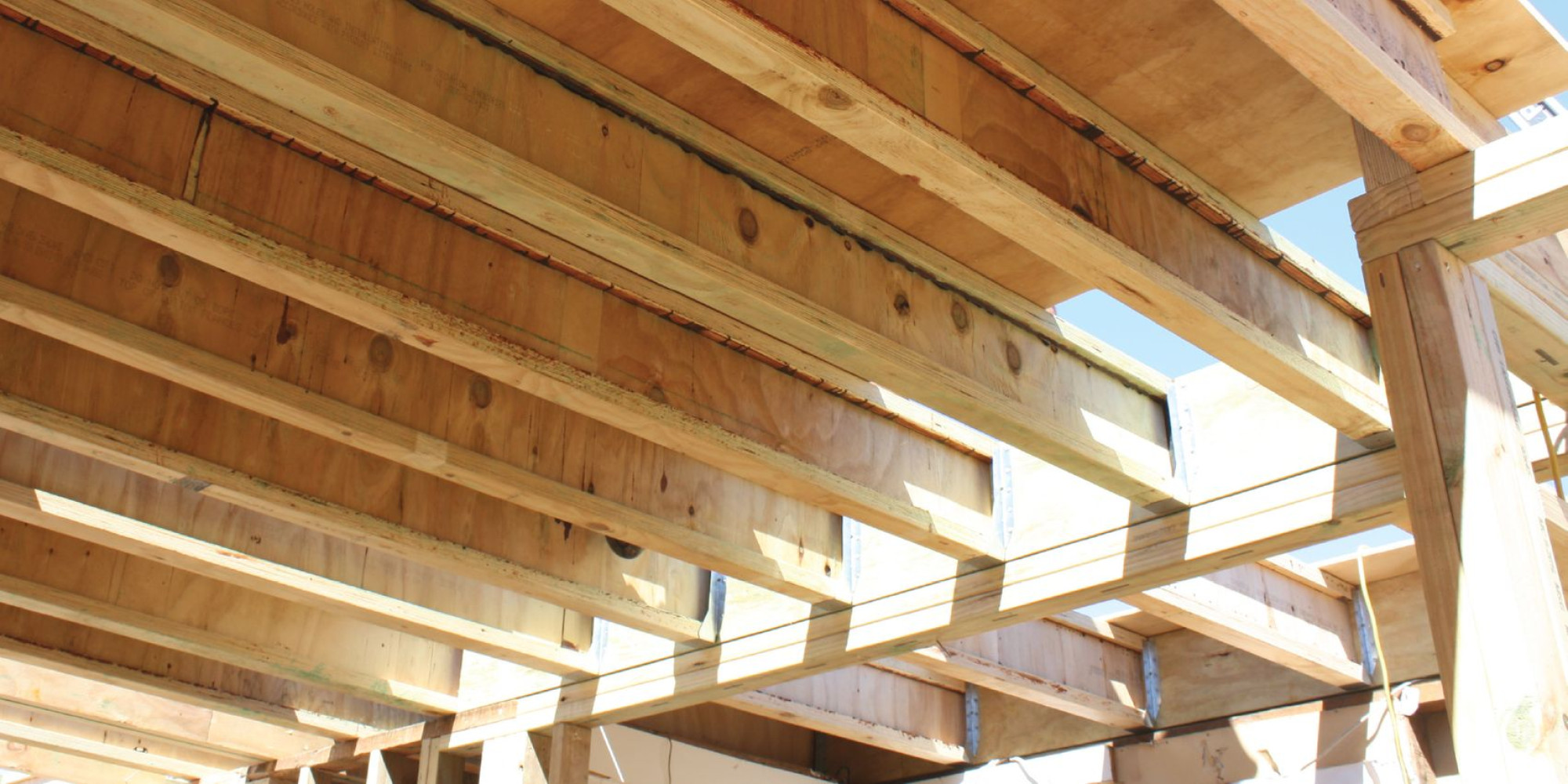

- Easier installation of services within the floor space

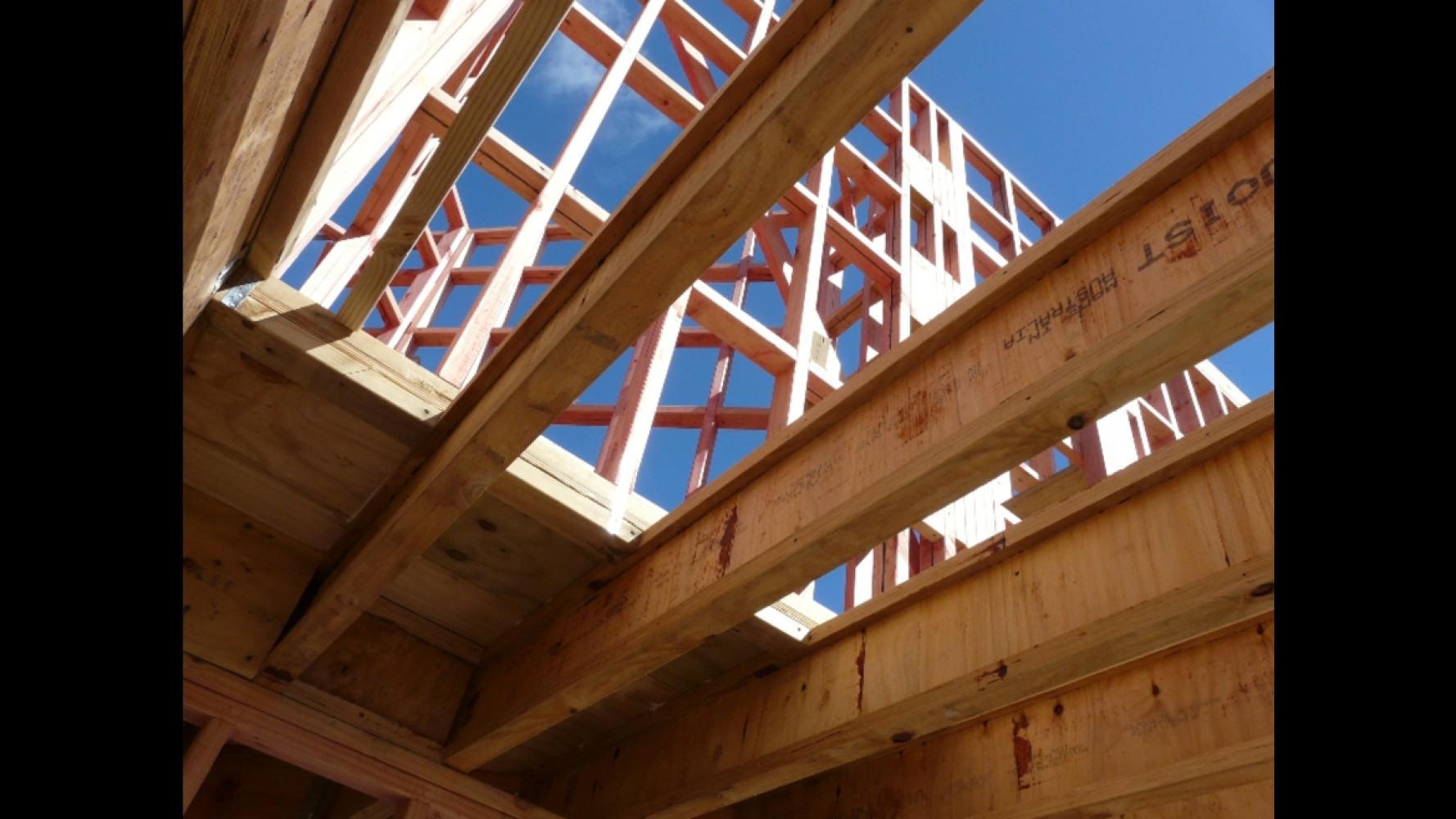

- Straight, uniform and dimensionally stable
- Stringent quality control – EWPAA certified
- Available Forest Stewardship Council® (FSC®) certified (FSC® C007103) upon request
- Residential Span Tables and installation guide available - refer brochures below
- Supported by technical support and software from Futurebuild LVL
- designIT® software suite available
- computeIT® software suite available for specific engineering design
Compliance
hyJOIST LVL flanges are manufactured in accordance with AS/NZS 4357, Structural Laminated Veneer Lumber, whilst manufactured hyJOIST beams are randomly sampled and in-grade verified against published Characteristic Properties. hyJOIST is a product certified by the Engineered Wood Products Association of Australasia (EWPAA), which is JAS-ANZ certified.
Futurebuild LVL is committed to manufacturing innovative engineered building products. For quality assurance the hyJOIST range is manufactured with independent audit processes and product certification.
All hyJOIST components are manufactured using a Type ‘A’ (marine) bond with less than 0.5mg/L formaldehyde (equivalent to E0) emissions from the final product
Untreated (UT) product may at times contain some glue line treatment.
Range
* Lengths made to order, lead times apply. Full Packs Only
- Please contact Futurebuild LVL for available lengths
- To ensure accurate specification and supply, hyJOIST should be noted on plans as HJDepth Flange Breadth hyJOIST e.g. HJ200 45 hyJOIST
- A range of face-mount, partial depth and top-mount joist hangers are also available to suit the hyJOIST range
Software

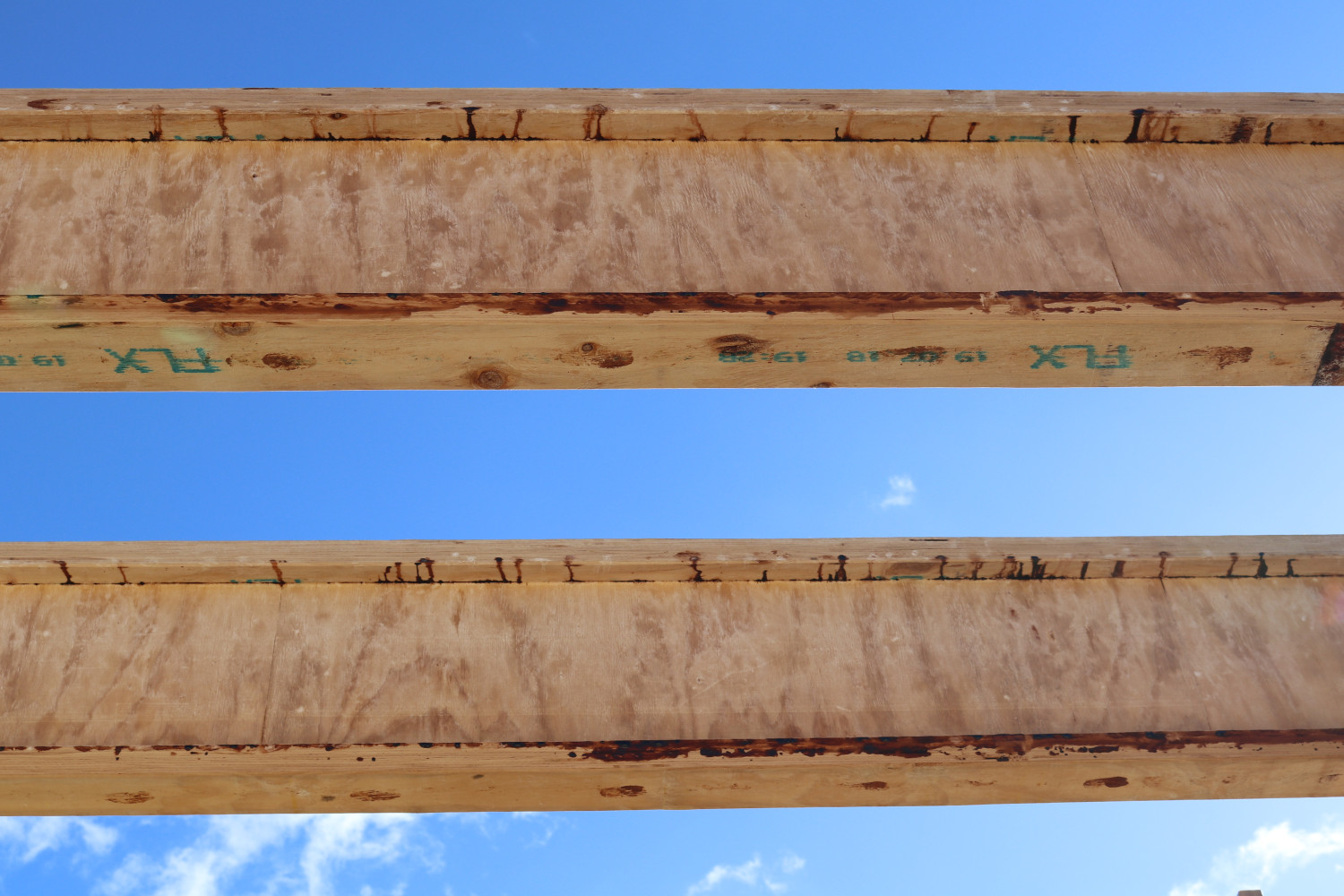

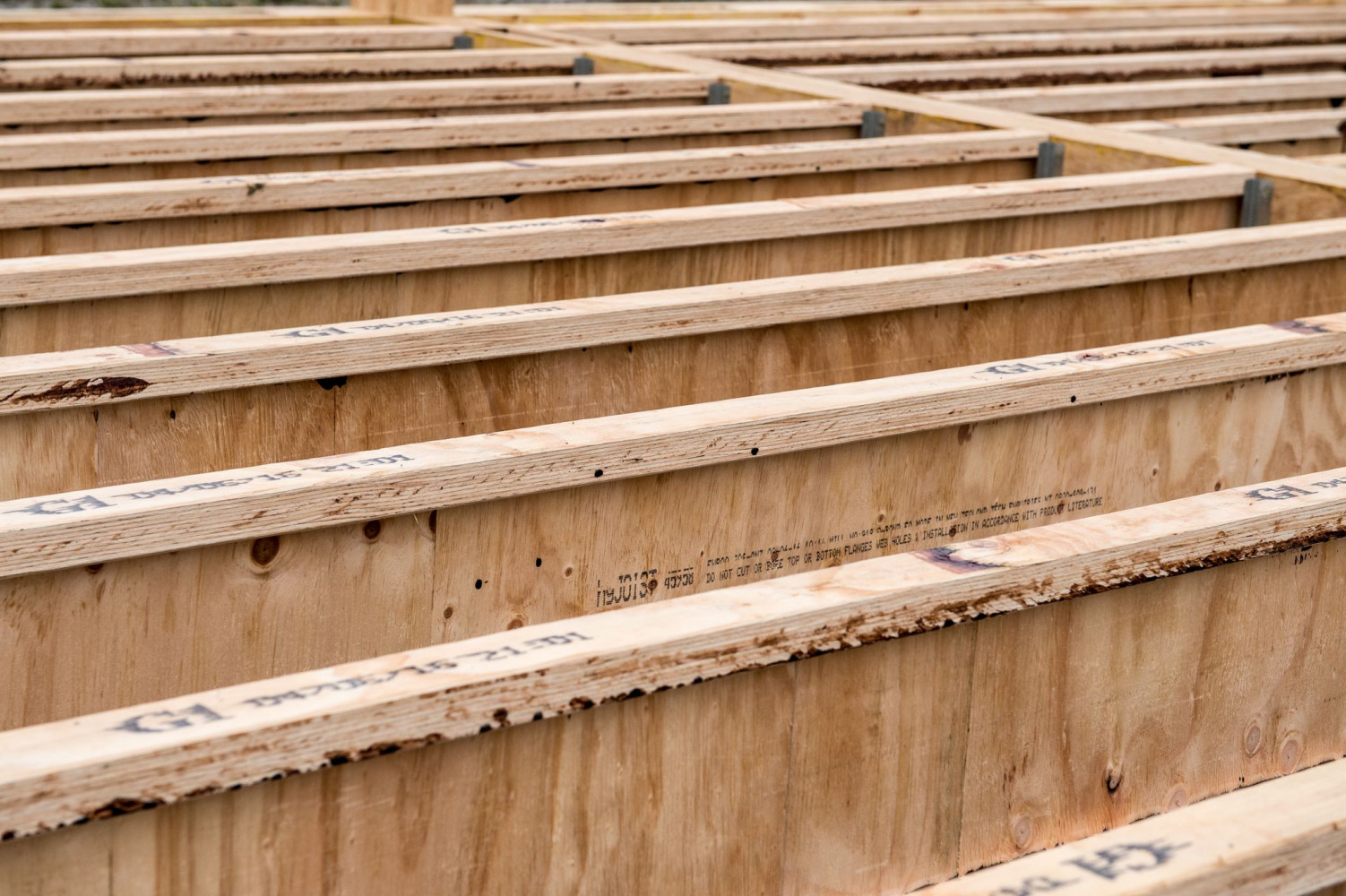

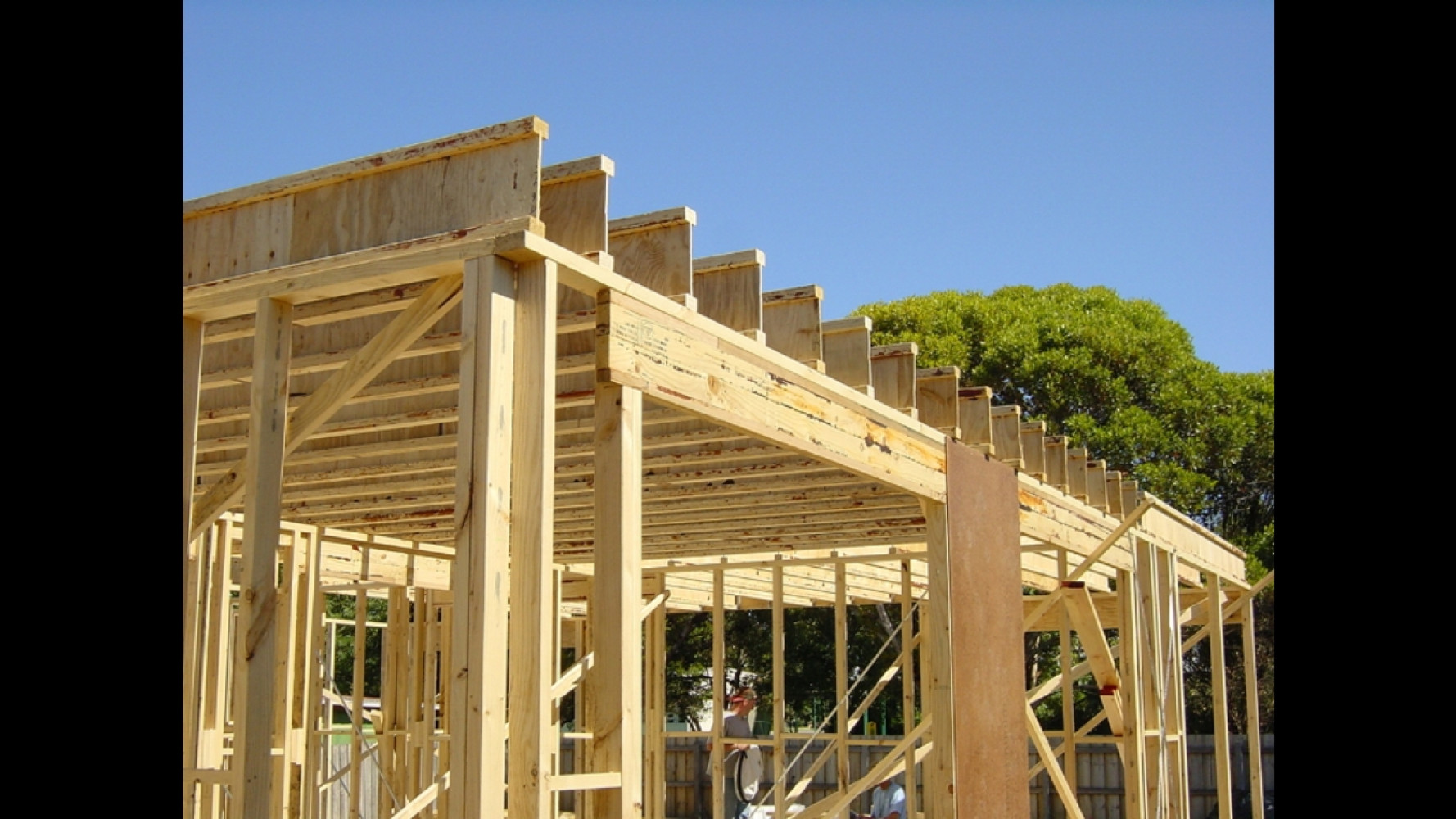

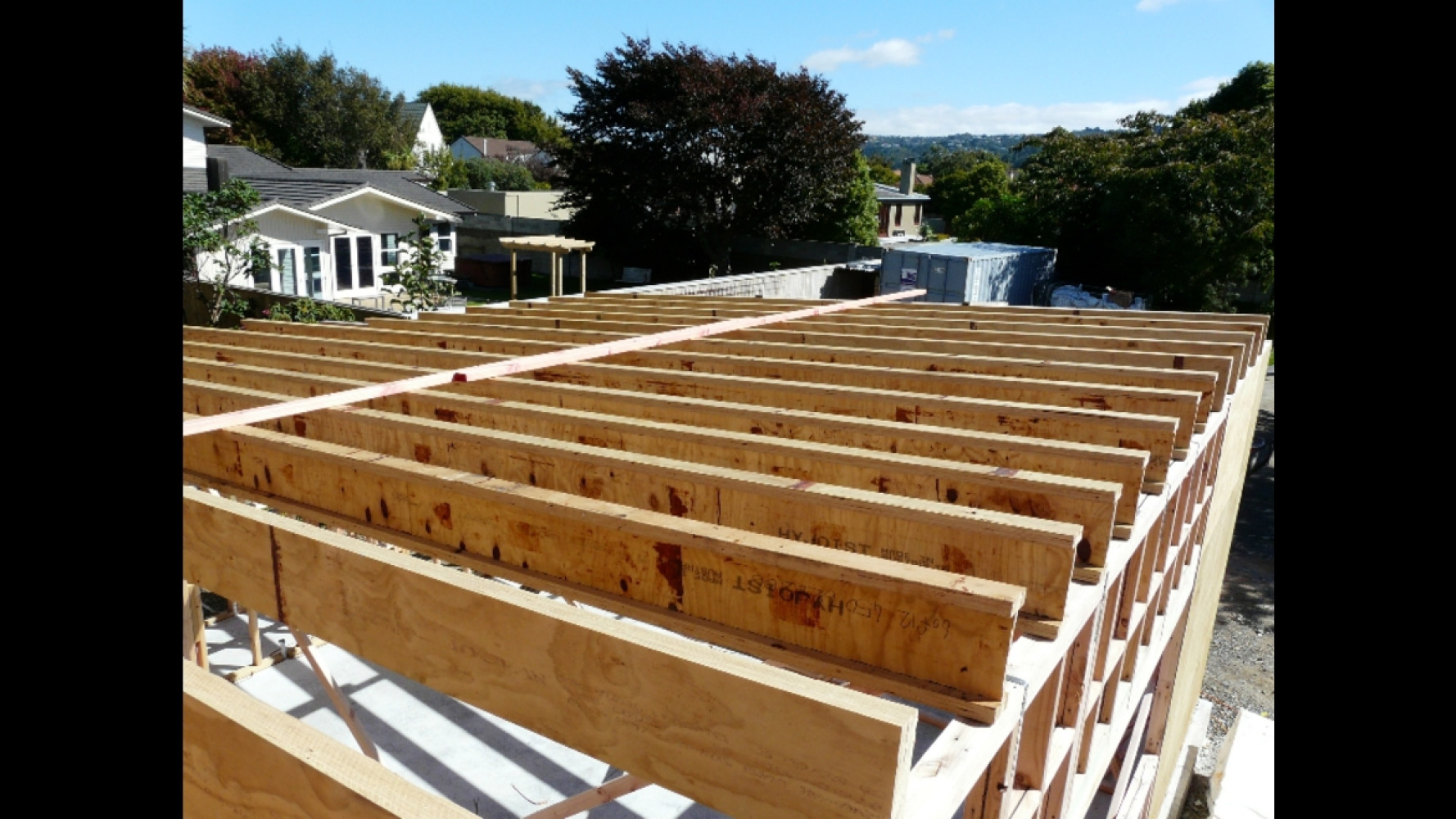

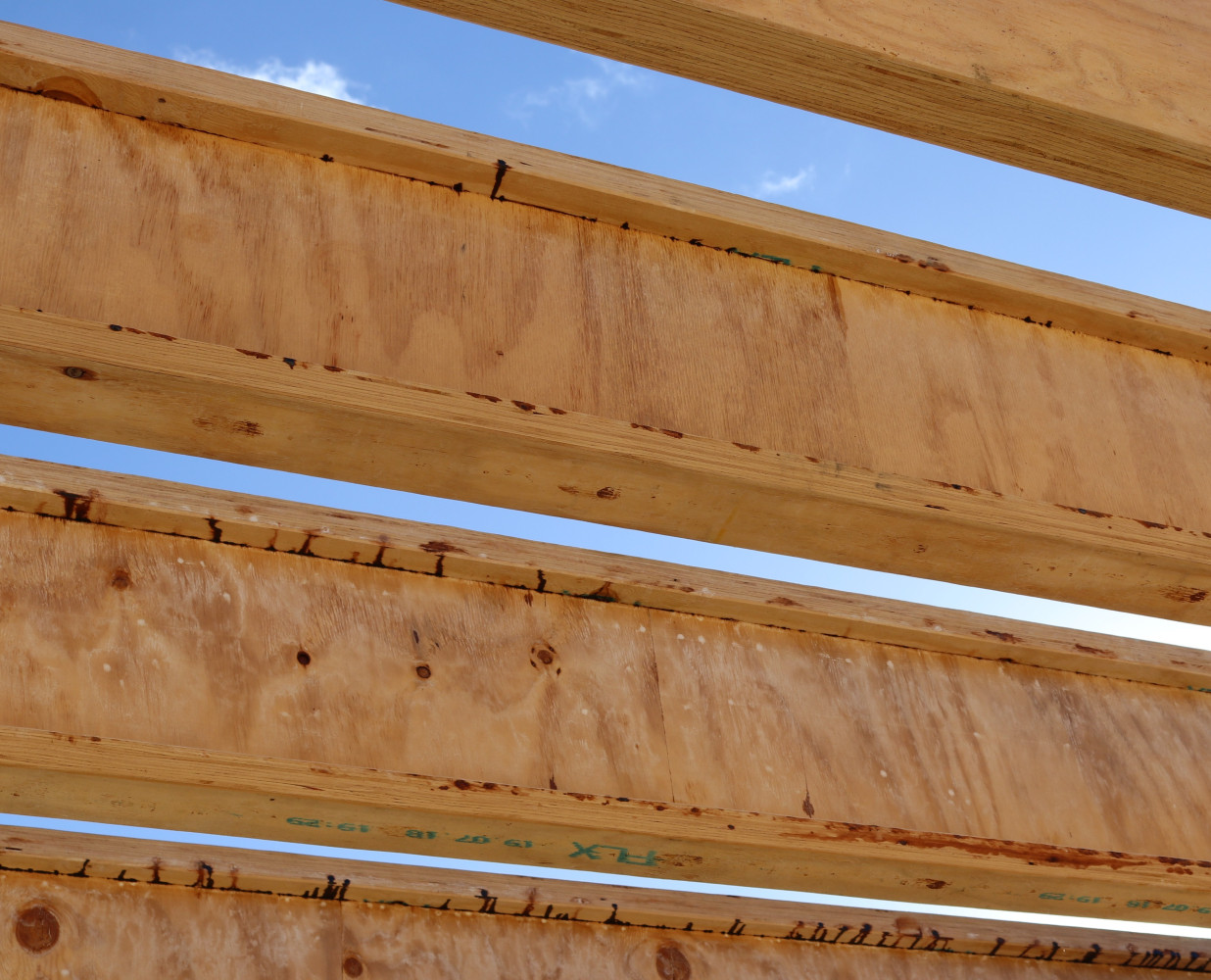

Photo Gallery
Brochure
Futurebuild LVL hyJOIST Installation Guide
This guide provides a variety of details specific to the use of hyJOIST floor systems for houses and similar buildings. Details contained in this publication have been appropriately engineer designed and/or tested to determine their suitability.
Futurebuild LVL Residential Design Guide NZ
Manufactured by Futurebuild LVL, Laminated Veneer Lumber (LVL) is the engineered solution for residential housing design and
construction.
Batten & Cradle™ Acoustiflor™ System Specification & Installation Guide
Carter Holt Harvey Plywood Ltd together with Carter Holt Harvey LVL Ltd, trading as Futurebuild® LVL, and B&C Systems International Limited (Batten and Cradle™) have developed a lightweight floor system that is suitable for use as an inter-tenancy floor.
Futurebuild LVL Specific Engineering Design Guide
Properties and structural characteristics for the Futurebuild LVL range for use by specifiers and engineers for specific design LVL projects.
designIT for Commercial Floors Installation Guide
This guide provides a variety of details specific to the use of Futurebuild LVL floor systems for commercial, industrial and other heavily loaded floors. designIT® for Commercial Floors is a software tool for all building practitioners designing with the Futurebuild LVL range and other selected materials. It enables a wide range of commercial and industrial floor solutions to be developed in a simple and powerful application.
Technical Note
hyJOIST as a substitute for SG8
hyJOIST provides an engineered wood product solution for floor joist and rafter applications in residential and light commercial buildings.
Futurebuild LVL and Treatment For Use in Buildings
Technical Note relating to treatment for use in buildings
Futurebuild LVL Trouble with Substitutes
Think hard and check before substituting one building product for another. Get it wrong and you could be creating quality issues and have trouble getting a Code Compliance Certificate.
Information Bulletin
Futurebuild LVL What do Residential Design Service order include
Document for New Users of the Residential Design Service
Futurebuild LVL hyJOIST & RDS Info Bulletin
Optimising your mid-floor layout using Laminated Veneer Lumber (LVL) provides many benefits to both builders and homeowners.
Futurebuild LVL DesignIT For Houses Software: A Guide for Designers
Optimising the use of designIT for Houses Software - a guide for designers
Futurebuild LVL computeIT Software for Engineers Flyer
computeIT® is designed to aid in the specification of heavy Laminated Veneer Lumber (LVL) structural
members and non-residential structural systems. Learn more in this flyer on the computeIT software suite.
